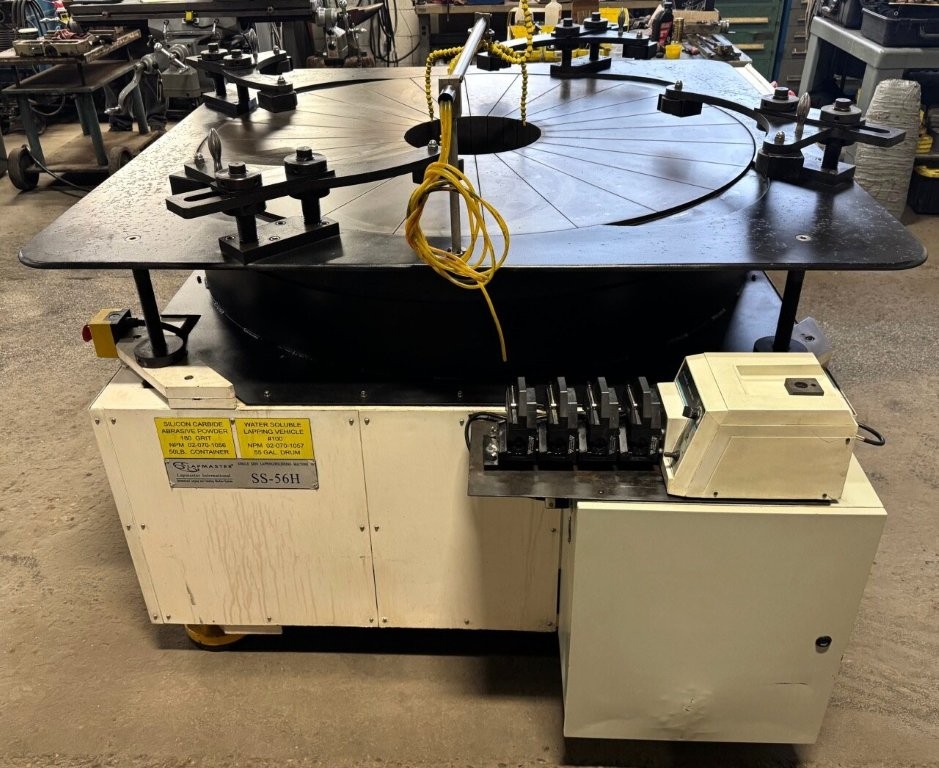

LAPMASTER 56
    설명
    "open face" style lappers, with variable speeds to the table, water cooling to the table, 2 types of slurry units, cast iron lapping plates (very thick), and 4 conditioning rings (very high). Four Ring Style Open Face Machine For Production Parts Up To: 20-3/4” Diameter Diameter of Lapping Plate: 56” O.D. X 14.5” I.D. Conditioning Ring Size: 23” O.D. X 20.875” I.D. Lap Plate Speed (Variable) Approx.: 15 to 55 R.P.M. Overall Size of machine: 91” x 80” x 60”H Shipping Weight Approx.: 9,560 Lbs. 56” Diameter Cast Iron Segmented Lapping Plate (4-1/2” thick) (4) Cast Iron Slotted Conditioning Rings (6” high) (4) Adjustable Ring Roller Guides (Yokes) Variable Speed Controller of the Lapping Plate Automatic Cycle Timer Control 15 H.P. Main Drive Motor & Controls Presently Wired for 3/60/460 Volt Operation Graymills Slurry Pump & Tank Unit Peristaltic Slurry Pump Unit PolyScience Water Chiller Unit Overhead 4-Way Slurry Distributor Push Button Control Station Inlet & Outlet Connections for Water Cooling of the Lap Plate Operators & Maintenance Manual with Schematics
    환경 설정
    환경 설정 없음
    OEM 모델 설명
    미제공
    문서
    verified-listing-icon

    검증됨

    카테고리
    Wafer Lapping

    마지막 검증일: 60일 이상 전

    주요 품목 세부 정보

    조건:

    Used


    작동 상태:

    알 수 없음


    제품 ID:

    138089


    웨이퍼 사이즈:

    알 수 없음


    빈티지:

    2011


    Logistics Support
    Available
    Transaction Insured by Moov
    Available
    Refurbishment Services
    Available
